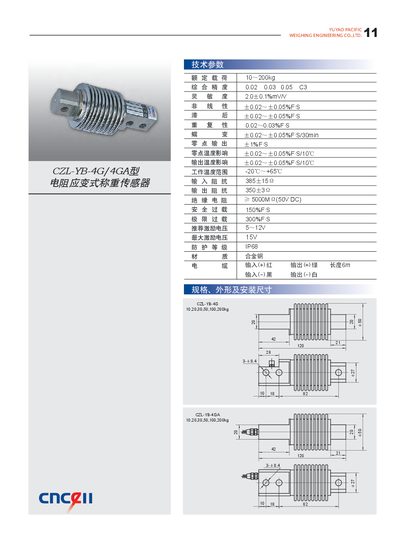

CZL-YB-4G/4GA type strain gauge load cell is a kind of CZL-YB series strain gauge load cell. The sensor adopts high-precision strain gauge, and adopts a unique laminated design, with good linearity, high precision, high stability and high reliability. It is widely used in various weighing instruments, mechanical equipment, automatic control and other fields.
The CZL-YB-4G and CZL-YB-4GA are resistance strain weight sensors designed for loads from 10 kg to 200 kg. They provide high accuracy, low hysteresis, and stable performance across a wide temperature range.
Key electrical characteristics include a sensitivity of about 2.0 µV/V, excitation voltage of 5‑12 V (maximum 15 V), and IP68 protection. Mechanical specifications cover operating temperature from –20 °C to +65 °C and a robust alloy‑steel construction. This manual is written in Chinese.
| Rated Load | 10‑200 kg |
|---|---|
| Sensitivity | 2.0 µV/V |
| Nonlinearity | 0.02‑0.059 %FS |
| Hysteresis | 0.02‑0.05 %FS |
| Repeatability | 0.02‑0.03 %FS |
| Temperature Drift | 0.02‑0.05 %FS/10 °C |
| Operating Temperature | -20 °C to +65 °C |
The sensor can measure loads from 10 kg up to 200 kg.
It operates between –20 °C and +65 °C.
