CNCELLS is a strain gauge pressure sensor used to test the liquid pressure in various containers. It is characterized by high accuracy, high sensitivity, and wide operating temperature range.

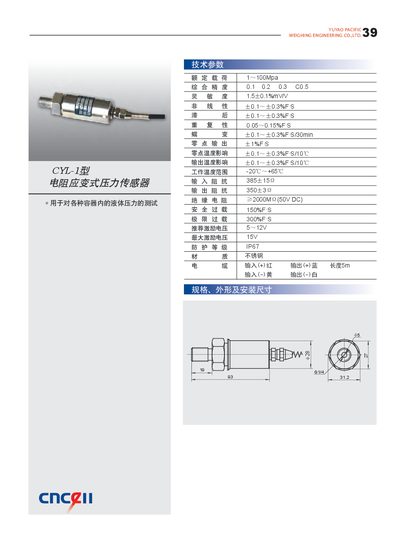

The CYL-1 resistance strain pressure sensor is designed for weighing engineering applications. It offers a rated load capacity of 1–100 MPa and high measurement accuracy with hysteresis as low as 0.1–0.3 %.
Key technical data include an operating temperature range of –20 °C to +65 °C, excitation voltage of 5–12 V (maximum 15 V), output impedance of about 350 Ω, and an IP67 protection rating for harsh environments. This manual is written in Chinese.
| Accuracy | 0.1 % |
|---|---|
| Output impedance | 350 Ω |
| Safety factor | 150 % |
| Overload limit | 300 % |
| Maximum excitation voltage | 15 V |
