This document introduces the specifications, dimensions, installation dimensions, technical parameters, and features of CNCELLS. The product has various rated loads, comprehensive accuracy, sensitivity, non-linearity, etc., and is suitable for various working environments.
The CZL-YB-1B/1C/1D series are resistance strain weight sensors offered by Yuyao Pacific. They are available in three variants (1B, 1C, 1D) with different material constructions and cable configurations, designed for precise weighing applications.

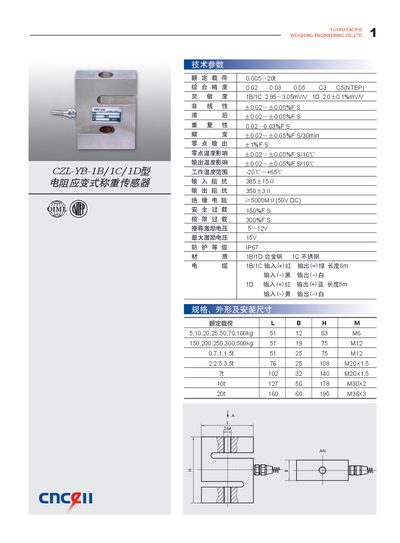

The datasheet lists detailed technical parameters such as rated load ranges from 5 kg up to 20 t, overall accuracy, sensitivity, non‑linearity, hysteresis, temperature effects, operating temperature range, input/output impedance, insulation resistance, recommended and maximum excitation voltages, IP67 protection, and cable lengths. This manual is written in Chinese.
| Rated Load | 5–100 kg, 150–500 kg, 0.7–20 t |
|---|
Rated loads range from 5 kg up to 100 kg, 150 kg up to 500 kg, and 0.7 t up to 20 t depending on the model.
