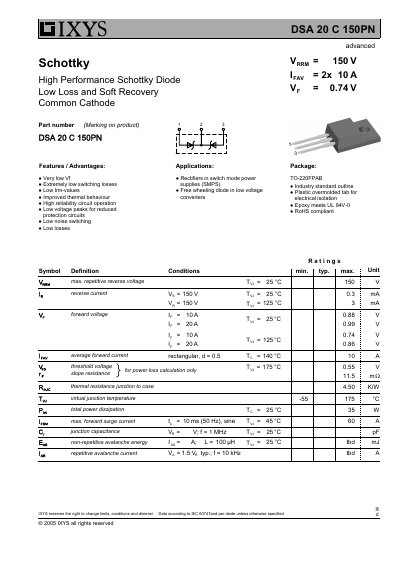

DSA 20 C 150PN is a high performance Schottky diode with low loss and soft recovery characteristics. It can be used as a rectifier in switch mode power supplies (SMPS) and as a free wheeling diode in low voltage converters.
The DSA 20 C 150PN is an advanced high‑performance Schottky diode offering very low forward voltage, extremely low switching losses, low reverse leakage, and improved thermal behaviour. It is designed for high‑reliability circuit operation with low voltage peaks and low noise switching.
Typical applications include rectifiers in switch‑mode power supplies (SMPS) and free‑wheeling diodes in low‑voltage converters. The device is supplied in a TO‑220FPAB package with a plastic over‑molded tab for electrical isolation and meets UL 94V‑0 and RoHS standards.
| Maximum repetitive reverse voltage (VRRM) | 150 V |
|---|---|
| Thermal resistance junction‑to‑case (RthJC) | 4.50 K/W |
| Storage temperature range | -55 °C to 150 °C |
| Weight | 2 g |
It is used as a rectifier in switch‑mode power supplies and as a free‑wheeling diode in low‑voltage converters.
