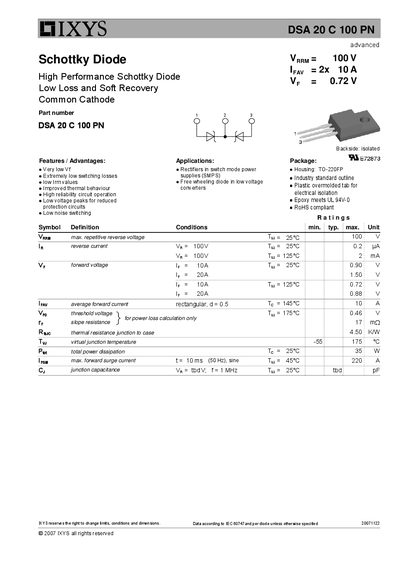

DSA 20 C 100 PN is a high performance Schottky Diode with very low Vf, extremely low switching losses, low Irm values, improved thermal behaviour, high reliability circuit operation, low voltage peaks and low noise switching.
The DSA 20 C 100 PN is a high‑performance Schottky diode with very low forward voltage, low reverse recovery loss and excellent thermal behaviour. It is intended for use as a rectifier in switch‑mode power supplies and as a free‑wheeling diode in low‑voltage converters.
Key ratings include a reverse voltage of 100 V, a typical forward voltage drop of 0.72 V at 10 A forward current, and a TO‑220FP package with a junction‑to‑case thermal resistance of 4.50 K/W. The device meets UL 94‑0 and RoHS compliance.
| Thermal Resistance (junction‑to‑case) | 4.50 K/W |
|---|
