PLUS 247TM is a high-frequency switching power MOSFET produced by IXYS company. It has the characteristics of low Qg, low Rg, high dV/dt, low trr and is suitable for DC-DC converters, switch-mode power supplies, choppers and other applications.

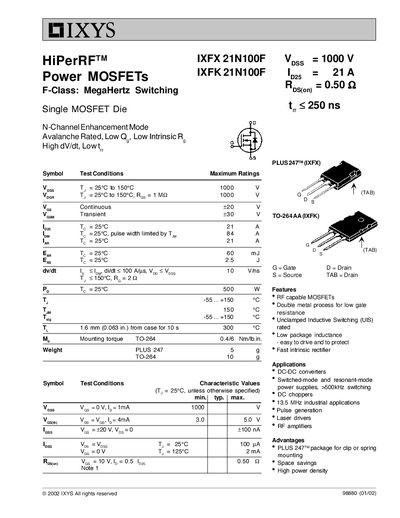

The IXFX 21N100F and IXFK 21N100F are N‑channel enhancement mode Power MOSFETs designed for high‑frequency switching applications. They feature a double‑metal process for low gate resistance, an unclamped inductive switching (UIS) rating, and a low‑inductance TO‑264 AA package for easy mounting.
Typical uses include DC‑DC converters, switched‑mode and resonant‑mode power supplies operating above 500 kHz, DC choppers, 13.5 MHz industrial circuits, pulse generation, laser drivers, and RF amplifiers. The datasheet lists maximum ratings, test conditions, and mechanical dimensions for design reference.
| Drain‑Source Voltage (V_DSS) | 1000 V |
|---|---|
| Pulsed Drain Current (I_DM) @ 25 °C | 84 A |
| Power Dissipation (P_D) @ 25 °C | 500 W |
| Package | TO‑264 AA |
The device is rated for a maximum V_DSS of 1000 V.
The MOSFET is supplied in a TO‑264 AA package.
Typical applications include DC‑DC converters, switched‑mode and resonant‑mode power supplies, DC choppers, 13.5 MHz industrial circuits, pulse generation, laser drivers, and RF amplifiers.
