DSA 90 C 200HB is a high performance Schottky diode with low losses and soft recovery. It features very low VF, extremely low switching losses, low Irm values, improved thermal behavior, high reliability circuit operation, low voltage peaks for reduced protection circuits, low noise switching and low losses.

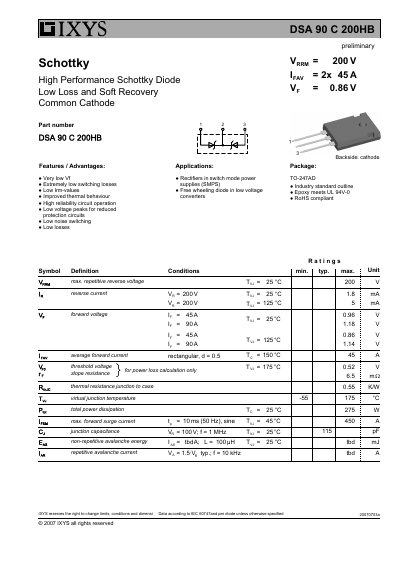

This preliminary data sheet describes the IXYS DSA 90 C 200HB power Schottky diode, highlighting its very low forward voltage, low switching losses, and high reliability. The document lists key electrical ratings, thermal performance, and typical application areas such as rectifiers in switch‑mode power supplies and free‑wheeling diodes in low‑voltage converters.
The diode is supplied in a TO‑247AD package and includes detailed graphs of forward voltage drop, reverse current, junction capacitance, and thermal impedance. Mechanical dimensions, mounting torque, and storage temperature limits are also provided for design engineers. This manual is written in Chinese.
| Maximum reverse voltage (VRRM) | 200 V |
|---|---|
| Typical forward voltage drop (VF) | 0.86 V |
| Thermal resistance junction‑to‑case (RthJC) | 0.55 K/W |
| RMS current per pin | 70 A |
The diode is rated for a maximum reverse voltage of 200 V.
Its typical forward voltage drop is about 0.86 V.
