SPW20N60S5 is a high voltage MOSFET with a maximum voltage of 600V and a maximum current of 20A. It has ultra low gate charge, periodic avalanche rating, extreme dv/dt rating, ultra low effective capacitances and improved transconductance.

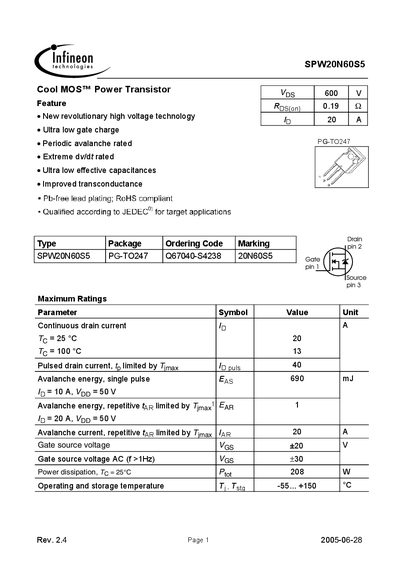

The SPW20N60S5 is a 600 V, 20 A Cool MOS™ power transistor offered in a TO‑247 package. It features ultra‑low gate charge, low capacitances, high transconductance, and is RoHS‑compliant.
The document lists maximum ratings, thermal characteristics, electrical parameters, and characteristic curves, including breakdown voltage, on‑state resistance, capacitances, gate charge, and safe operating area.
| Continuous drain current (25 °C) | 20 A |
|---|---|
| Power dissipation (25 °C) | 208 W |
| Input capacitance (Vgs=0 V, Vds=25 V) | 3000 pF |
The transistor can conduct up to 20 A continuously at 25 °C.
