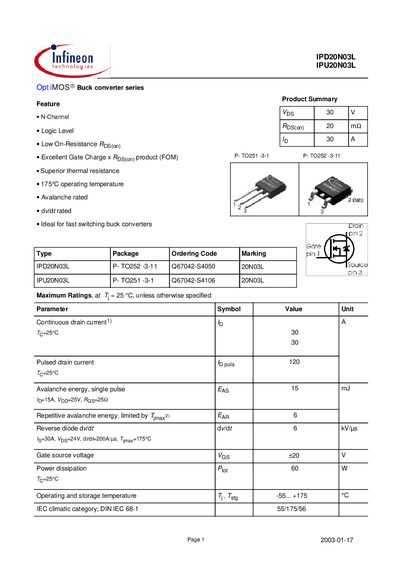

This datasheet mainly introduces the features and characteristics of IPD20N03L and IPU20N03L, including product model, package, maximum ratings, electrical characteristics, etc.
The IPD20N03L and IPU20N03L are N‑channel OptiMOS® buck‑converter MOSFETs featuring low on‑resistance, logic‑level gate drive, high avalanche capability and a wide operating temperature range. The datasheet lists key features such as superior thermal resistance, fast switching performance and suitability for high‑efficiency buck converter designs.
The document provides comprehensive electrical, thermal and dynamic characteristics, including maximum ratings, typical output and transfer curves, safe operating area, and gate‑charge data. It also includes mechanical dimensions, package information and regulatory notices for use in automotive and industrial applications.
| Continuous drain current (Id) | 30 A (25 °C) |
|---|---|
| Pulsed drain current (Id,pulse) | 120 A (25 °C) |
| Avalanche energy (single pulse) | 15 mJ |
| Power dissipation (Pd) | 60 W (25 °C) |
| Operating temperature range | -55 °C to +175 °C |
| Gate threshold voltage (Vgs(th)) | typical 1.6 V |
The device can conduct a continuous drain current of 30 A at 25 °C.
The maximum power dissipation is 60 W at a case temperature of 25 °C.
They are rated for operation from –55 °C up to +175 °C.
