SKP10N60A is an IGBT module from Infineon with a 600V rating and a maximum output current of 10A. It has a low switching loss and a rated junction temperature of 150°C. The product is manufactured using NPT-technology and is highly reliable. It is also equipped with a reverse-parallel EmCon diode for fast recovery. SKP10N60A is suitable for various motor control and inverter applications.

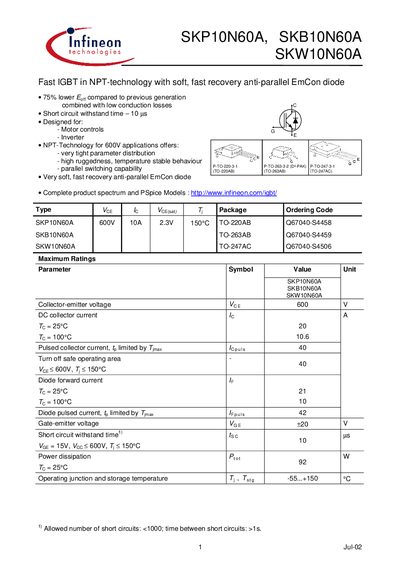

This datasheet provides the electrical, thermal and switching characteristics of Infineon's fast IGBT family SKP10N60A, SKB10N60A and SKW10N60A. The devices are built with NPT‑technology for 600 V applications and feature a soft, fast‑recovery anti‑parallel EmCon diode.
Key parameters such as collector‑emitter voltage, short‑circuit withstand time, thermal resistance and gate‑emitter voltage are listed, together with typical switching waveforms and energy loss curves. The document also includes package information and a disclaimer on warranty and usage in life‑support systems.
| Collector‑emitter voltage (VCE) | 600 V |
|---|---|
| Short‑circuit withstand time | 10 µs |
The device is rated for a collector‑emitter voltage of 600 V.
The short‑circuit withstand time is specified as 10 µs.
