BAT165 is a medium power AF Schottky diode manufactured by ON Semiconductor. It has a forward current of 750 mA and a reverse voltage of 40 V. It is suitable for low-loss, fast-recovery, meter protection, bias isolation and clamping applications.

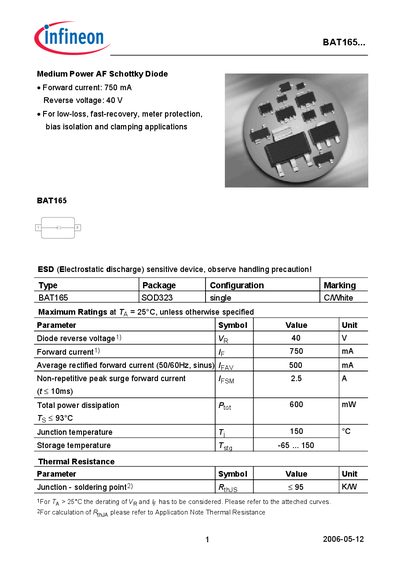

The BAT165 is a medium‑power, fast‑recovery Schottky diode intended for low‑loss, meter‑protection, bias‑isolation and clamping applications. The document lists maximum ratings, typical electrical characteristics, and handling precautions for the device.
Key sections include maximum ratings, detailed forward and reverse voltage characteristics, thermal resistance data, and package dimensions for the SOD‑323 package. Legal and safety notices are also provided at the end of the sheet.
