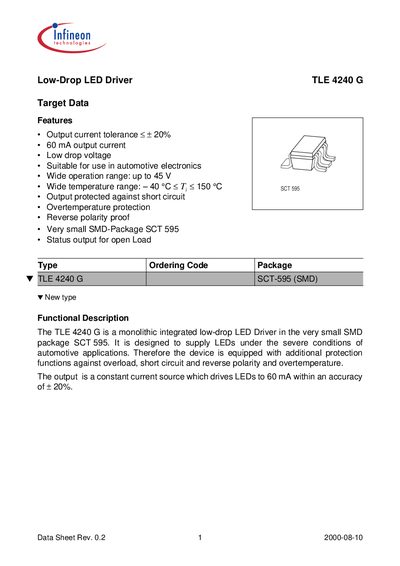

The TLE 4240 G is a monolithic integrated low-drop LED Driver in the very small SMD package SCT 595. It is designed to supply LEDs under the severe conditions of automotive applications. The output is a constant current source which drives LEDs to 60 mA within an accuracy of ± 20%.
The TLE4240G is a monolithic low‑drop LED driver designed for automotive applications. It delivers a constant 60 mA LED current with a tolerance of ±20 % and includes protections against short‑circuit, over‑temperature, and reverse polarity, plus a status output for open‑load detection.
The device is offered in a very small SCT‑595 surface‑mount package. The datasheet provides pin definitions, a block diagram, electrical characteristics such as a typical 0.7 V drop voltage at 60 mA, and absolute maximum ratings up to 45 V input and –40 °C to 150 °C operating temperature.
| Output current | 60 mA |
|---|---|
| Output current tolerance | + 20 % |
| Temperature range | -40 °C – 150 °C |
| Package type | SCT‑595 (SMD) |
