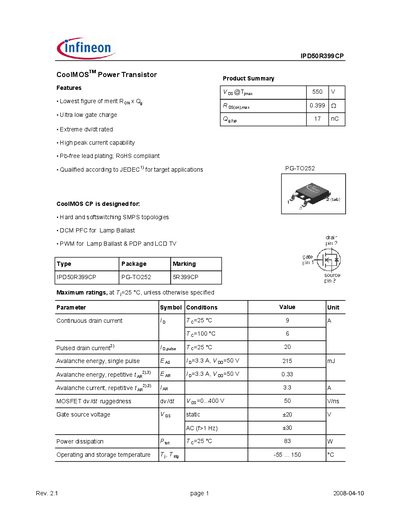

IPD50R399CP CoolMOSTM power transistor features the lowest figure of merit RON x Qg, ultra low gate charge, extreme dv/dt rating, high peak current capability, Pb-free lead plating, and RoHS compliance. It is designed for hard and softswitching SMPS topologies, DCM PFC for lamp ballast, and PWM for lamp ballast and PDP/LCD TVs.
The IPD50R399CP is a CoolMOS™ power transistor designed for hard and soft‑switching SMPS topologies, lamp ballast, PWM, and LCD TV applications. It features ultra‑low gate charge, high peak current capability, and RoHS‑compliant, lead‑free packaging.
The document lists maximum ratings, thermal characteristics, static and dynamic electrical parameters, and typical output characteristics, enabling designers to assess suitability for high‑frequency, high‑power designs.
| Continuous drain current (Id) | 9 A |
|---|---|
| Pulsed drain current (Ipp) | 20 A |
The continuous drain current is 9 A at 25 °C.
The maximum pulsed drain current is 20 A at 25 °C.
