IKA10N60T is an IGBT from Infineon with a very low Vce(sat) of 1.5V, a maximum junction temperature of 175°C and a short circuit withstand time of -5µs. This product is suitable for applications such as washing machines, air conditioners, inverters and variable speed drives.
The IKA10N60T is a 600 V, 10 A IGBT from Infineon's TrenchStop® series, featuring low on‑state voltage, high switching speed and robust temperature stability. It includes a soft, fast‑recovery anti‑parallel EmCon HE diode and complies with RoHS and JEDEC standards.

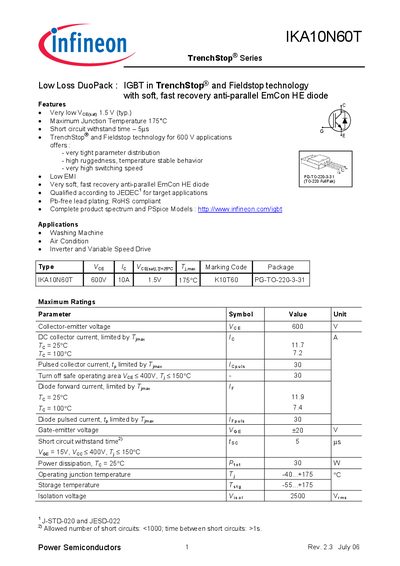

The document provides detailed electrical, thermal and switching characteristics, maximum ratings, and typical performance curves for design engineers. It also contains legal notices and contact information for Infineon Technologies AG.
| Collector‑emitter voltage (VCE) | 600 V |
|---|---|
| Continuous collector current (IC) | 10 A |
| Maximum junction temperature (Tj) | 175 °C |
| Power dissipation at 25 °C (PD) | 30 W |
| Turn‑on delay time (t_on) at 25 °C | 12 ns |
The device is rated for a maximum collector‑emitter voltage of 600 V.
It can conduct up to 10 A continuously.
The junction temperature can be operated from –40 °C up to 175 °C.
Typical turn‑on delay time is 12 ns at 25 °C.
