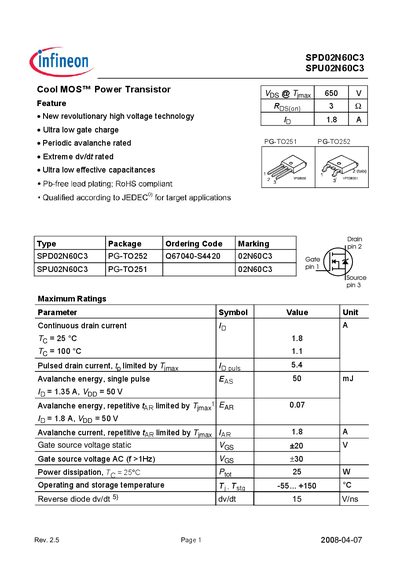

This datasheet describes the Infineon SPD02N60C3 Cool MOS power transistor, highlighting its high‑voltage capability, ultra‑low gate charge and low effective capacitances. It includes maximum ratings, thermal characteristics, and detailed electrical parameters for design engineers.
The document also contains typical output and switching characteristics, gate‑charge curves, safe operating area graphs, and mechanical dimensions for the PG‑TO‑251 and PG‑TO‑252 I‑PAK packages. Legal and safety notices are provided at the end of the file.
| Power dissipation (Pd) at 25 °C | 29 W |
|---|---|
| Avalanche energy (single pulse) | 50 mJ |
| Fall time | 12 ns |
