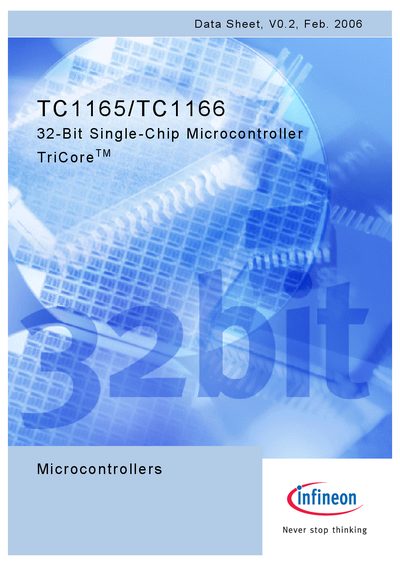

This is a Data Sheet about Infineon TC1165/TC1166 32-Bit Single-Chip Microcontroller TriCoreTM, which details the features and characteristics of the product.
The TC1165/TC1166 is a 32‑bit single‑chip microcontroller based on Infineon's TriCore™ architecture. It offers a high‑performance CPU, integrated DSP, floating‑point unit, and a rich set of peripherals including multiple serial interfaces, CAN, and ADCs.
The document details the device’s functional blocks, memory map, electrical parameters, and package information, helping designers understand the capabilities and integration requirements of the microcontroller for industrial and multi‑market applications.
| CPU core | TriCore v1.3, 4‑stage pipeline |
|---|---|
| Maximum operating frequency | 80 MHz |
| Program Flash size | 1504 KB |
| Data Flash size | 32 KB |
| SRAM size | 56 KB |
| Parameter Memory (PRAM) | 8 KB |
| Code Memory (CMEM) | 12 KB |
| Core supply voltage | 1.5 V |
| I/O voltage | 3.3 V |
| Operating temperature range | -40 °C to +85 °C |
| Package type | PG‑LQFP‑176‑2 |
| CAN nodes | 2 |
| ADC channels | 32 analog input lines |
| ADC resolution options | 8‑bit, 10‑bit, or 12‑bit |
| FADC resolution | 10‑bit |
The core supply voltage is 1.5 V.
It operates from –40 °C to +85 °C.
The device provides 1504 KB of program flash memory.
It is supplied in a PG‑LQFP‑176‑2 package.
