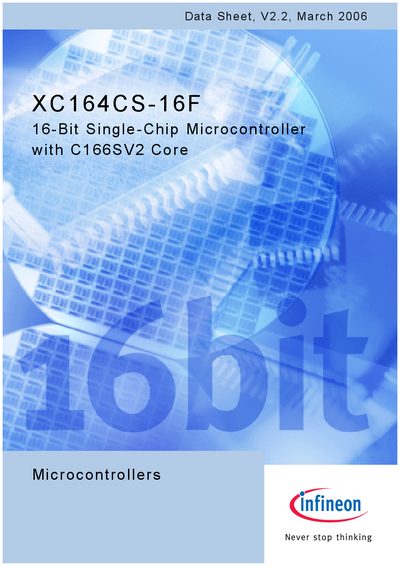

This document is a datasheet that describes the features and characteristics of the XC164CS-16F 16-bit single-chip microcontroller produced by Infineon Technologies AG in March 2006.
The XC164CS-16F is a 16‑bit single‑chip microcontroller based on Infineon's C166SV2 core. It offers a high‑performance CPU with a 5‑stage pipeline, up to 75 interrupt sources, and extensive on‑chip peripherals such as A/D converters, timers, and a TwinCAN interface.
The datasheet details electrical parameters, memory organization, package options, and reliability data. It also includes ordering information and a summary of the various derivatives within the XC164 family.
| Instruction Cycle Time | 25 ns at 40 MHz CPU clock |
|---|---|
| On‑Chip DPRAM | 2 Kbytes |
| A/D Converter Resolution | 10‑bit or 8‑bit |
| Interrupt Sources | up to 75 |
| Package Type | 100‑Pin TQFP, 0.5 mm pitch |
It supports up to 75 interrupt sources with a 16‑priority‑level interrupt system.
The instruction cycle time is 25 ns at a 40 MHz CPU clock.
It is offered in a 100‑pin TQFP package with a 0.5 mm (19.7 mil) pitch.
