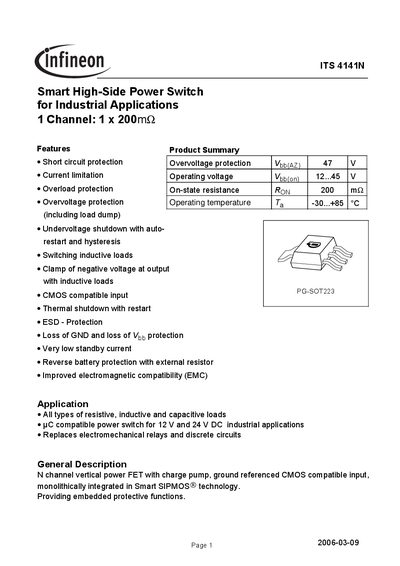

ITS 4141N is a Smart High-Side Power Switch for Industrial Applications. It features short circuit protection, current limitation, overload protection, overvoltage protection (including load dump), undervoltage shutdown and reverse battery protection.
The ITS 4141N is a smart high‑side power switch designed for industrial use, offering a single 200 mΩ channel with built‑in protection functions such as short‑circuit, over‑voltage, overload, undervoltage shutdown with auto‑restart, thermal shutdown, ESD protection, and reverse‑battery protection. It is CMOS‑compatible, supports 12 V‑24 V DC systems, and can replace electromechanical relays.
The document details maximum ratings, electrical characteristics, EMC performance, and package information. It includes typical operating parameters, thermal characteristics, and ordering codes, making it a comprehensive reference for designers integrating the ITS 4141N into their circuits.
| On‑state resistance (Ron) | 200 mΩ (typ) |
|---|
