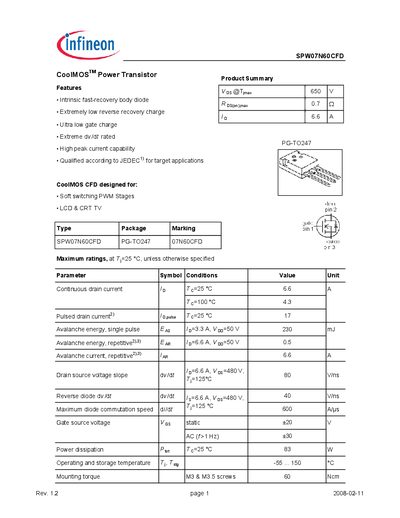

SPW07N60CFD CoolMOSTM Power Transistor is a power transistor with many features and characteristics, including intrinsic fast-recovery body diode, extremely low reverse recovery charge, ultra-low gate charge, extreme dv /dt rating, high peak current capability, etc. It is designed for applications such as soft switching PWM stages and LCD & CRT TVs.
The SPW07N60CFD is a CoolMOS power transistor designed for soft‑switching PWM stages in LCD and CRT TV applications. It features an intrinsic fast‑recovery body diode, ultra‑low gate charge, and high dv/dt capability, packaged in a PG‑TO‑247 case.
Key electrical parameters include a continuous drain current of 6.6 A, pulsed drain current of 17 A, a drain‑source voltage rating of 480 V, on‑state resistance of 0.59 mΩ at 25 °C, total gate charge of 35 nC, and a single‑pulse avalanche energy of 230 mJ. Thermal resistance and junction‑to‑ambient specifications are also provided for reliable design.
| Drain‑source voltage (Vds) | 480 V |
|---|
The rated drain‑source voltage is 480 V.
