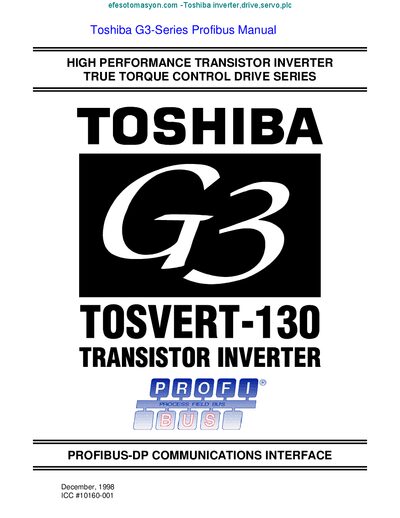

Installation, wiring, safety and maintenance instructions for the Profibus‑DP communications interface of the Toshiba TOSVERT‑130 G3 inverter.
This manual describes the Profibus‑DP communications interface for the Toshiba TOSVERT‑130 G3 high‑performance transistor inverter. It includes device specifications, wiring methods, grounding requirements, installation and removal procedures, and parameter settings.
The document also provides safety precautions, maintenance and inspection guidelines, storage and warranty information, as well as detailed data structures and register access instructions needed for proper integration of the Profibus‑DP option into the inverter system.
| Operating temperature range | -10 °C to +40 °C |
|---|---|
| Storage temperature range | -25 °C to +65 °C |
| EEPROM write‑cycle life | 10,000 write cycles |
| Valid Profibus slave address range | 0 – 125 |
The inverter must operate in an ambient temperature between –10 °C and +40 °C.
The EEPROM can be written up to 10,000 times before it reaches its lifespan.
Slave addresses may be set from 0 to 125; addresses 126 and above are invalid.
