This document mainly introduces the features and characteristics of TC7SH32FS, including high speed, low power consumption, high noise immunity, 5.5V tolerant input and wide operating voltage range.
The TC7SH32FS is a 2‑input OR gate offered by Toshiba. It features a typical propagation delay of 3.8 ns, low supply current (2 µA max) and high noise immunity. The device operates from a 2.0 V to 5.5 V supply and tolerates a 5.5 V input voltage.

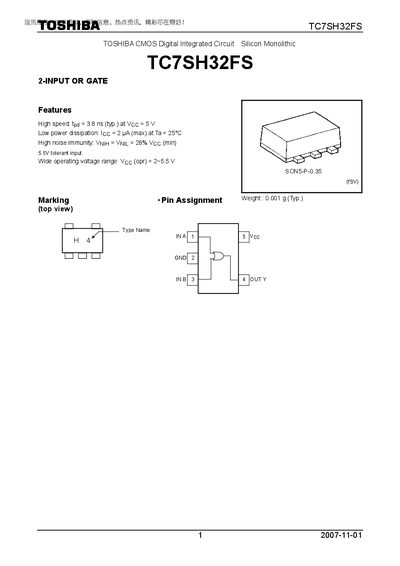

The datasheet lists absolute maximum ratings, detailed DC and AC electrical characteristics, package dimensions (SON5‑P‑0.35, 0.001 g weight) and usage restrictions. It is intended for general electronics applications such as computers, office equipment, and industrial robotics.
| Typical propagation delay (tpg) | 3.8 ns |
|---|---|
| Maximum supply current (Icc) | 2 µA |
| Operating supply voltage (Vcc) | 2.0 V – 5.5 V |
| Operating temperature range | -40 °C to 85 °C |
| Maximum power dissipation | 50 mW |
| Package type | SON5‑P‑0.35 |
| Typical weight | 0.001 g |
The typical propagation delay is 3.8 ns.
The device can dissipate up to 50 mW.
The recommended operating supply voltage is 2.0 V to 5.5 V.
It operates from –40 °C to 85 °C.
