This document describes the features and characteristics of the TC7SH32FS product from Dinghao, including high speed, low power dissipation, high noise immunity, and wide operating voltage range.

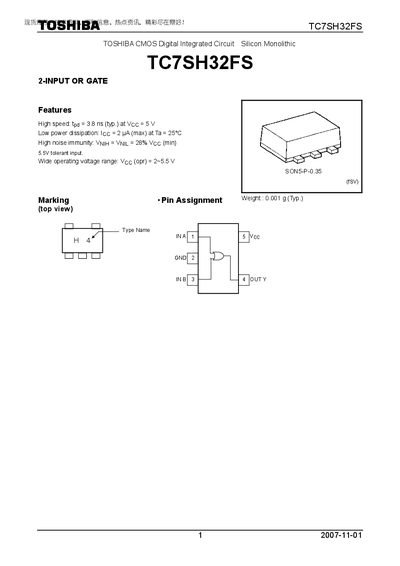

The TC7SH32FS is a CMOS 2‑input OR gate IC offered by Toshiba. It features high speed with a typical propagation delay of 3.8 ns at a 5 V supply, low power consumption (2 µA max), and high noise immunity (28 % Vcc). The device operates over a wide supply voltage range of 2.0 V to 5.5 V and is tolerant to 5.5 V inputs.
The datasheet lists absolute maximum ratings, including a supply voltage range of –0.5 V to 7.0 V and a power dissipation limit of 50 mW. Detailed electrical characteristics such as input and output voltage levels, leakage currents, and capacitances are provided, along with package dimensions and weight (0.001 g typ.). Restrictions on product use and reliability considerations are also included.
