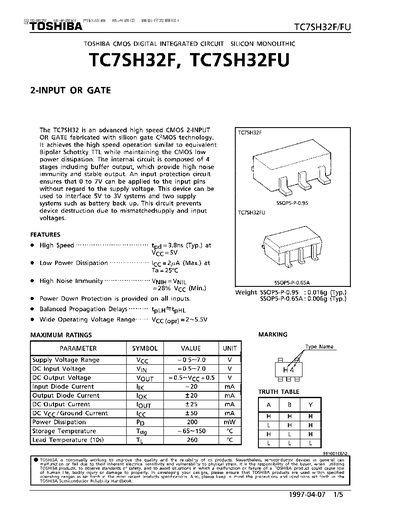

The TC7SH32F/FU is a high‑speed CMOS 2‑input OR gate designed for low power dissipation and high noise immunity. It operates over a wide supply range and includes input protection for 0‑7 V signals, making it suitable for interfacing 5 V to 3 V systems.
Key specifications include a supply voltage range of –0.5 V to 7.0 V, typical power dissipation of 200 mW, and operation in temperatures from –40 °C to 85 °C. The device is offered in SSOP5‑P‑0.95 and SSOP5‑P‑0.65 packages with typical weights of 0.016 g and 0.006 g respectively.
| Input Voltage (VIN) | -0.5~7.0 V |
|---|---|
| Output Voltage (VOUT) | -0.5~Vcc+0.5 V |
| Power Dissipation (PD) | 200 mW |
| Storage Temperature (Tstg) | -65~150 °C |
| Lead Temperature (TL, 10 s) | 260 °C |
Typical power dissipation is 200 mW.
The device can operate from –40 °C to 85 °C.
