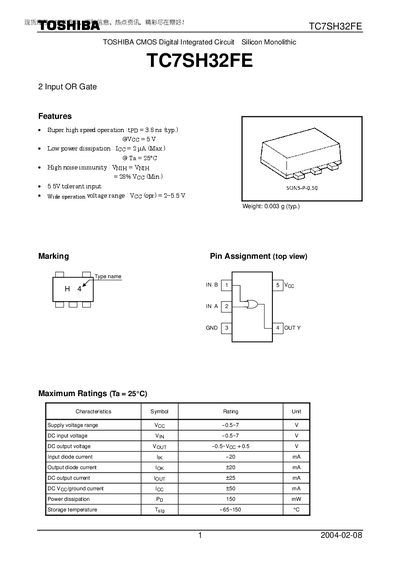

This document is a technical datasheet about the TC7SH32FE model. It describes the features and characteristics of the product, such as super high-speed operation, low power dissipation, and high noise immunity. The TC7SH32FE is a CMOS digital integrated circuit that functions as an input OR gate.
The TC7SH32FE is a Toshiba CMOS 2‑input OR gate offered in a SONS5‑P‑0.50 package. It features super‑high speed operation, low power dissipation, and a wide operating voltage range, making it suitable for general electronics applications such as computers, office equipment, and industrial robotics.
The document lists detailed electrical characteristics, maximum ratings, AC characteristics, and package dimensions, as well as important usage restrictions that prohibit deployment in safety‑critical or high‑reliability systems like medical or aerospace equipment.
| Operating voltage range | 2~5.5 V |
|---|---|
| Typical propagation delay | 3.8 ns |
| Power dissipation | 150 mW |
| Weight | 0.003 g (typ.) |
| Input capacitance | 4‑10 pF |
The typical propagation delay is 3.8 ns.
It operates from 2 V to 5.5 V.
It must not be used in safety‑critical or high‑reliability equipment such as medical, aerospace, or traffic‑signal devices.
