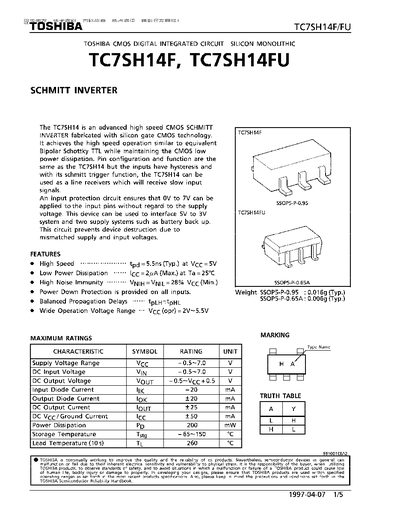

This document describes the Toshiba TC7SH14F/FU CMOS Schmitt inverter, highlighting its high‑speed operation, low power dissipation, and built‑in input protection. It includes a feature list, maximum ratings, recommended operating conditions, and detailed electrical characteristics.
The datasheet also provides pin assignment diagrams, package outline drawings for the SSOP5‑P‑0.95 and SSOP5‑P‑0.65A packages, and typical values such as propagation delay, power dissipation, and operating temperature range.
| Supply voltage range | 2.0 V to 5.5 V |
|---|---|
| Power dissipation | 200 mW |
| Operating temperature range | -40 °C to 85 °C |
| Input diode current (leakage) | -20 mA |
| Package weight (SSOP5‑P‑0.95) | 0.016 g (Typ.) |
| Input capacitance | 10 pF |
It operates from 2.0 V up to 5.5 V.
The device can dissipate up to 200 mW.
