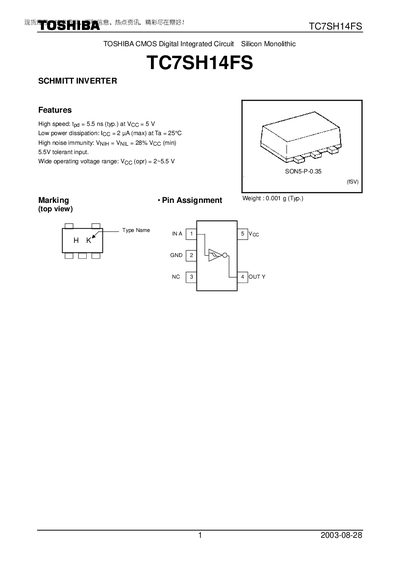

This document describes the features and characteristics of TC7SH14FS TOSHIBA CMOS digital integrated circuit, including high speed, low power dissipation, high noise immunity, etc.
The TC7SH14FS is a CMOS Schmitt‑trigger inverter offering high speed (typical propagation delay 5.5 ns) and ultra‑low power dissipation (Icc = 2 pA). It operates over a wide supply range (2.0 V – 5.5 V) and tolerates 5.5 V inputs, making it suitable for general electronics applications.
The document lists maximum ratings, recommended operating conditions, AC characteristics, and package dimensions (SON5‑P‑0.35, 0.001 g weight). It also includes usage restrictions, stating the device must not be used in safety‑critical or high‑reliability equipment such as medical or aerospace systems.
| Propagation delay (tpd) | 5.5 ns (typ.) |
|---|---|
| Supply voltage range (Voc) | -0.5 V ~ 7.0 V |
| Input leakage current (Icc) | 2 pA (max) |
| Operating temperature (Topr) | -40 °C ~ 85 °C |
| Power dissipation (Pp) | 50 mW |
| Package weight | 0.001 g (typ.) |
The typical propagation delay is 5.5 ns.
The recommended supply voltage range is 2.0 V to 5.5 V.
The device can dissipate up to 50 mW.
Yes, it should not be used in safety‑critical or high‑reliability equipment such as medical or aerospace systems.
