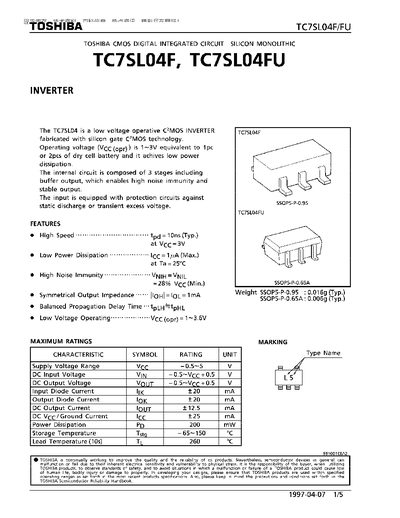

The TC7SL04F/FU is a low‑voltage CMOS inverter designed for operation from 1 V to 3.6 V. It features low power dissipation, high noise immunity, symmetrical output impedance, and balanced propagation delay, making it suitable for battery‑powered applications. The device includes input protection against static discharge and transient over‑voltage.
The datasheet provides comprehensive electrical characteristics, including supply voltage range, output current limits, propagation delay times, and maximum ratings. Package dimensions and typical weights for the SSOP5‑P‑0.95 and SSOP5‑P‑0.65A versions are also listed, along with recommended operating temperature ranges.
| Supply Voltage Range | 1 V ~ 3.6 V |
|---|---|
| Power Dissipation | 200 mW |
| Typical Propagation Delay (tPHL) | 10 ns |
| Input Leakage Current (IIL) | -20 µA |
| Operating Temperature Range | -40 °C ~ 85 °C |
| Package Weight (SSOP5‑P‑0.95) | 0.016 g (typ) |
| Package Weight (SSOP5‑P‑0.65A) | 0.006 g (typ) |
The device operates from 1 V to 3.6 V supply voltage.
The typical propagation delay (tPHL) is 10 ns.
The maximum power dissipation is 200 mW.
The device can operate from –40 °C to 85 °C.
