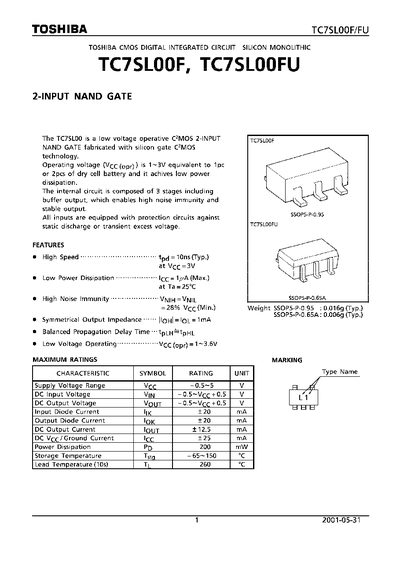

The TC7SLOOF/TC7SLOOFU is a low‑voltage CMOS 2‑input NAND gate with high noise immunity, low power dissipation and symmetrical output impedance. It operates from 1 V to 3.6 V and includes input protection against static discharge.
The document lists detailed electrical characteristics (propagation delay, leakage currents, power dissipation), package dimensions for SSOP5‑P‑0.95 and SSOP5‑P‑0.65A variants, and usage restrictions that prohibit deployment in safety‑critical or high‑reliability applications such as medical, aerospace, or traffic control equipment.
| Operating voltage (Vcc) | 1 ~ 3.6 V |
|---|---|
| Typical propagation delay (tPLH/tPHL) | 10 ns at Vcc = 3 V |
| Power dissipation | 200 mW |
| Input leakage current | -20 µA |
| Output drive current | 1 mA |
| Package weight (SSOP5‑P‑0.95) | 0.016 g (typ) |
| Package weight (SSOP5‑P‑0.65A) | 0.006 g (typ) |
The device operates from 1 V to 3.6 V.
Typical propagation delay is 10 ns when Vcc is 3 V.
