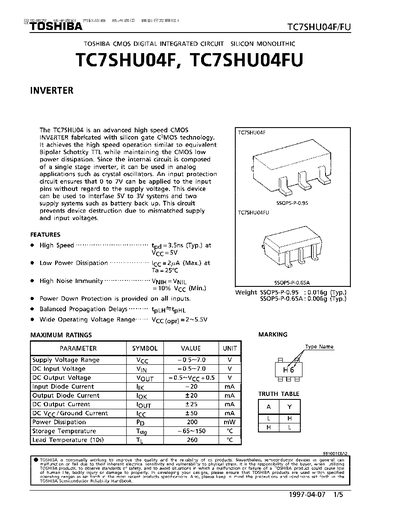

The TC7SHU04F/FU is a CMOS inverter fabricated with silicon gate C2MOS technology, offering high‑speed operation comparable to bipolar Schottky TTL while maintaining low power consumption. It features input protection for 0‑7 V, power‑down protection on all inputs, and can be used to interface 5 V to 3 V systems or dual‑supply configurations.
The datasheet provides comprehensive electrical characteristics, including recommended operating conditions, maximum ratings, DC and AC performance parameters, and package dimensions for the SSOP5‑P‑0.95 and SSOP5‑P‑0.65A variants.
| Supply Voltage (Vcc) | 2.0 V ~ 5.5 V |
|---|---|
| Input Voltage (VIN) | 0 V ~ 5.5 V |
| Output Voltage (VOUT) | 0 V ~ Vcc+0.5 V |
| Power Dissipation (PD) | 200 mW |
| Storage Temperature | -65 °C ~ 150 °C |
| Lead Temperature (10 s) | 260 °C |
| Input Diode Current | -20 mA |
| Output Diode Current | +20 mA |
| DC Output Current (Iout) | 425 mA |
| Typical Weight (SSOP5‑P‑0.95) | 0.016 g |
| Typical Weight (SSOP5‑P‑0.65A) | 0.006 g |
The device operates with a supply voltage (Vcc) from 2.0 V to 5.5 V.
The SSOP5‑P‑0.95 package weighs about 0.016 g (typical).
The maximum power dissipation is specified as 200 mW.
The allowed input voltage (VIN) ranges from 0 V to 5.5 V.
