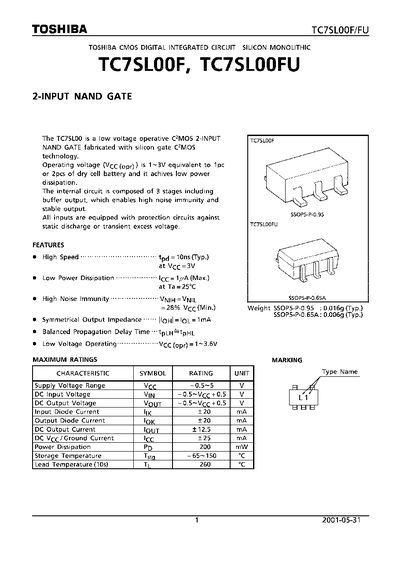

The TC7SLOOF/TC7SLOOFU is a low‑voltage CMOS 2‑input NAND gate with high noise immunity and low power dissipation. All inputs have protection against static discharge and transient over‑voltage. The device is offered in two SSOP5 packages (0.95 mm and 0.65 mm pitch) and includes a three‑stage internal circuit with a buffered output.
The datasheet lists detailed electrical parameters such as operating voltage (1 V to 3.6 V), typical propagation delay of 10 ns at 3 V, power dissipation of 200 mW, and input leakage of –20 µA. Package dimensions, weight, storage temperature range, and recommended operating conditions are also provided, along with restrictions that the IC must not be used in safety‑critical or high‑reliability applications.
| Operating voltage (Vcc) | 1 V ~ 3.6 V |
|---|---|
| Typical propagation delay (tPHL) | 10 ns at Vcc = 3 V |
| Power dissipation (Pb) | 200 mW |
| Input leakage current (Ileak) | -20 µA |
| Package weight (SSOP5‑P‑0.95) | 0.016 g (typ) |
| Storage temperature range | -65 °C ~ 150 °C |
The device operates from 1 V to 3.6 V.
Typical propagation delay is 10 ns when Vcc is 3 V.
Yes, it must not be used in safety‑critical applications such as medical, aerospace, or any equipment where failure could cause injury or loss of life.
