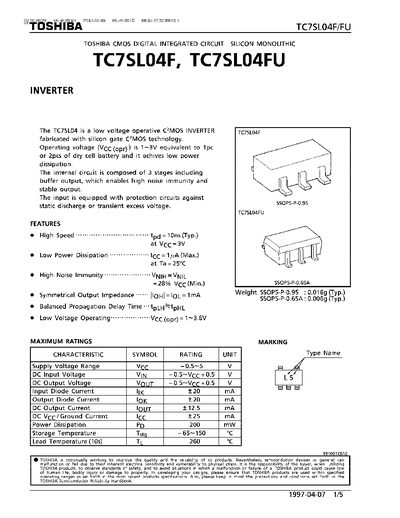

The TC7SL04F/FU is a CMOS digital inverter designed for low‑voltage operation (1 V to 3.6 V) with low power dissipation (200 mW) and high noise immunity. It features a symmetrical output impedance and balanced propagation delay, making it suitable for battery‑powered and low‑power applications.
The device is supplied in SSOP5‑P‑0.95 or SSOP5‑P‑0.65A packages, weighs about 0.016 g (typical), and operates over a temperature range of –40 °C to 85 °C. Detailed electrical characteristics, including input/output voltage ranges, timing parameters, and AC electrical characteristics, are provided in the datasheet.
| Supply Voltage Range | 1 V to 3.6 V |
|---|---|
| Input Voltage Range | 0 V to Vcc |
| Output Voltage Range | 0 V to Vcc |
| Operating Temperature | -40 °C to 85 °C |
| Typical Propagation Delay (tpd) | 10 ns at Vcc = 3 V |
| Power Dissipation | 200 mW |
| Package | SSOP5‑P‑0.95 (0.95 mm) |
| Typical Weight | 0.016 g |
The device operates with a supply voltage from 1 V up to 3.6 V.
Typical propagation delay is 10 ns when Vcc is 3 V.
The maximum power dissipation is specified as 200 mW.
It can operate from –40 °C to 85 °C.
