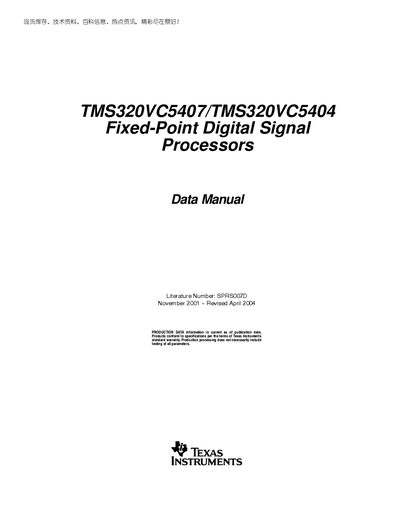

The data manual provides detailed specifications, pin assignments, functional block diagrams, and electrical characteristics for the TMS320VC5407 and TMS320VC5404 digital signal processors. It includes information on memory maps, on‑chip peripherals, timing parameters, and mechanical dimensions for both the 144‑ball BGA and low‑profile quad flat‑pack packages.
Additional sections cover packaging options, eco‑plan classifications, and ordering status, along with revision history and legal notices. The document is intended for designers and engineers who need precise device parameters for new designs or existing product support.
| Literature Number | SPRSOO7D |
|---|---|
| Package Type (TMS320VC5407) | ACTIVE BGA GGU |
| Package Type (TMS320VC5404) | ACTIVE LQFP PGE |
| Eco Plan | Pb‑Free (RoHS) |
The literature number is SPRSOO7D.
The manual was revised in April 2004.
The devices are listed as ACTIVE, meaning they are recommended for new designs.
