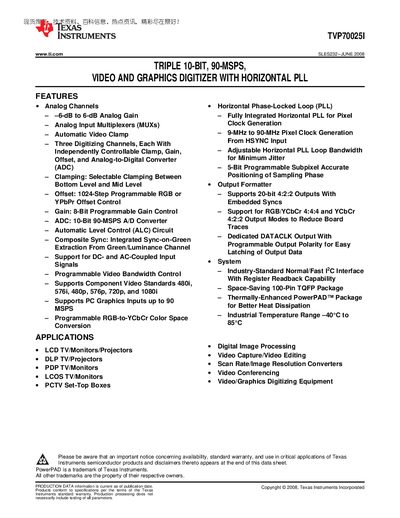

TVP70025I is a triple 10-bit, 90-MSPS video and graphics digitizer with features such as horizontal PLL, analog channels, pixel clock generation, automatic video clamp, and digitizing channels.
The TVP700251 is a triple 10‑bit, 90‑MSPS video and graphics digitizer with integrated horizontal PLL, supporting a wide range of video standards from SD to HDTV. It offers programmable analog gain, offset, and RGB‑to‑YCbCr color conversion, as well as 20‑bit 4:2:2 output formats with embedded syncs.
The document provides functional block diagrams, terminal assignments, absolute maximum ratings, recommended operating conditions, and detailed electrical characteristics. It also includes mechanical data for the 100‑pin TQFP PowerPAD package and important warranty and usage notices.
| Analog Gain Range | -6 dB to 6 dB |
|---|---|
| ADC Resolution | 10‑bit |
| Pixel Clock Range | 9 MHz to 90 MHz |
| Package Type | 100‑Pin TQFP PowerPAD |
| Operating Temperature Range | -40 °C to 85 °C |
The device can generate pixel clocks ranging from 9 MHz to 90 MHz.
It is available in a 100‑pin TQFP PowerPAD package.
The part is rated for operation from –40 °C to 85 °C.
