TVP7001 is a complete solution for digitizing video and graphic signals in RGB or YPbPr color spaces. It can be used for PC graphics digitizing up to the VESA standard of UXGA (1600 × 1200) resolution at 60 Hz screen refresh rate, and in video environments for the digitizing of digital TV formats, including HDTV up to 1080p.
The TVP7001 is a triple 8/10‑bit video and graphics digitizer with an integrated analog PLL, supporting pixel rates up to 165 MHz and offering RGB or YPbPr input formats. It includes programmable gain, clamping, and sync‑on‑green extraction for a variety of video and graphics applications.

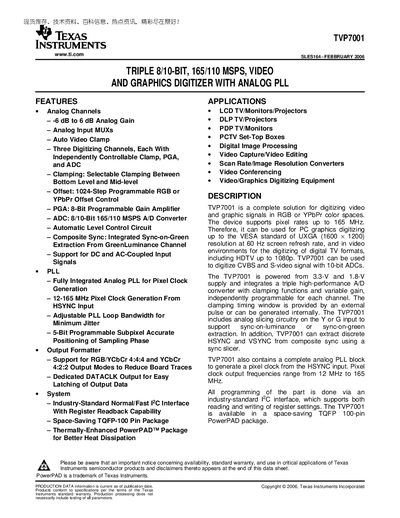

This datasheet details the device’s features, ordering information, pin assignments, electrical and timing specifications, recommended operating conditions, and mechanical package data, enabling designers to integrate the part into video capture, editing, and display systems.
| Pixel Clock Generation Range | 12‑165 MHz |
|---|---|
| ADC Resolution | 8‑/10‑bit |
| Maximum Sampling Rate | 165 MSPS |
| Supply Voltages | IOVDD 3.3 V, DVDD 1.8 V |
| Package | 100‑pin TQFP PowerPAD (plastic flat‑pack) |
The device uses a 3.3 V IOVDD supply and a 1.8 V DVDD supply.
Unused analog inputs should be grounded with a 10 nF capacitor, and the recommended coupling capacitor for active inputs is 0.1 µF.
