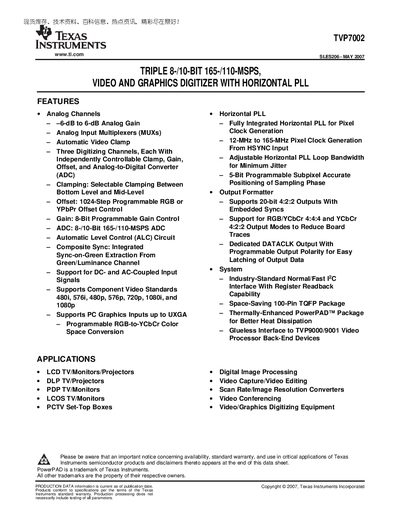

TVP7002 is a triple channel 8-/10-bit 165-/110-MSPS video and graphics digitizer with a horizontal PLL. It features adjustable horizontal PLL loop bandwidth, support for RGB/YCbCr 4:4:4 and YCbCr 4:2:2 output modes, and is suitable for component video standards such as 480i, 576i, 480p, 576p, 720p, 1080i, and 1080p.
The TVP7002 from Texas Instruments provides a complete solution for digitizing RGB or YPbPr video and graphics signals. It supports pixel rates up to 165 MHz, enabling PC graphics up to UXGA (1600 × 1200) and HDTV formats up to 1080p. The device integrates three high‑performance analog‑to‑digital converters, programmable gain and offset, and a fully integrated horizontal PLL for pixel‑clock generation.
The chip is supplied in a 100‑pin TQFP PowerPAD package and operates from 3.3 V and 1.9 V supplies. It offers a variety of digital video outputs (4:2:2, 4:4:4) and supports sync‑on‑green, composite sync extraction, and programmable RGB‑to‑YCbCr conversion. Electrical, mechanical and absolute‑maximum ratings are detailed in the document.
| Pixel clock output frequency range | 12 MHz to 165 MHz |
|---|---|
| ADC resolution | 8‑/10‑bit |
| IOVDD supply voltage | 3.3 V |
| DVDD supply voltage | 1.9 V |
| Operating temperature range | 0 °C to 70 °C |
| Package type | 100‑pin TQFP PowerPAD |
| Number of analog digitizing channels | 3 |
| Digital video output format | 20‑bit 4:2:2 |
| Analog input coupling | AC‑coupled (0.1 µF recommended) |
The TVP7002 is powered from a 3.3 V IOVDD supply and a 1.9 V DVDD supply.
The device can generate pixel clocks up to 165 MHz.
It is available in a 100‑pin TQFP PowerPAD (plastic flat‑pack) package.
The chip includes three independent analog video channels.
