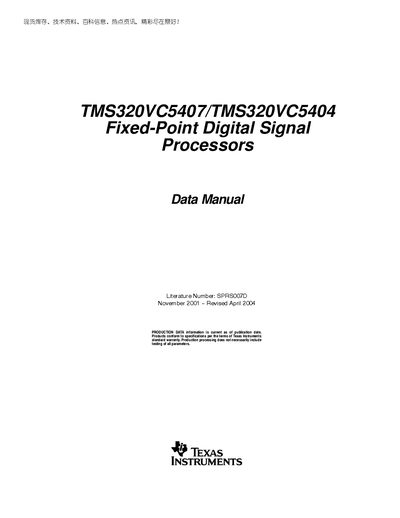

TMS320VC5407/TMS320VC5404 Fixed-Point Digital Signal Processors Data Manual
The manual provides a comprehensive overview of the TMS320VC5407 and TMS320VC5404 fixed‑point digital signal processors, including functional block diagrams, memory maps, peripheral descriptions, and pin assignments for both GGU and PGE packages. It also details the device's electrical characteristics, timing parameters, and recommended operating conditions.
Additional sections cover mechanical dimensions, package options, and packaging status (ACTIVE, NRND, etc.), with tables of package pins, thermal resistance, and environmental compliance. The document serves as a reference for designers and engineers integrating these DSPs into new designs.
| Package type (GGU) | Active BGA GGU |
|---|---|
| Package type (PGE) | Active LQFP PGE |
The TMS320VC5407 is listed as ACTIVE, meaning it is recommended for new designs.
