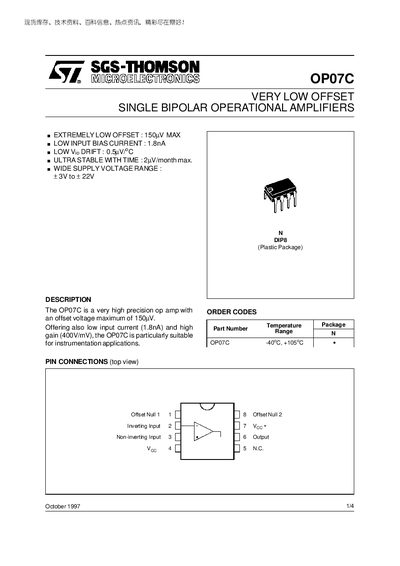

The OP07C is a very high precision op amp with an offset voltage maximum of 150µV. Offering also low input current (1.8nA) and high gain (400V/mV), the OP07C is particularly suitable for instrumentation applications.
The OP07C is a high‑precision, low‑offset, single bipolar operational amplifier designed for instrumentation applications. It features an extremely low input offset voltage (150 µV max) and low input bias current (1.8 nA), making it suitable for accurate signal conditioning.
The document lists the device’s absolute maximum ratings, detailed electrical characteristics such as supply voltage range (+3 V to +22 V), operating temperature (‑40 °C to +105 °C), gain‑bandwidth product (0.5 MHz), slew rate (0.17 V/µs), and supply current (5 mA). Mechanical data for the 8‑pin plastic DIP package are also provided.
| Supply Voltage Range | +3 V to +22 V |
|---|---|
| Input Offset Voltage (max) | 150 µV |
| Input Bias Current (typ) | 1.8 nA |
| Operating Temperature Range | -40 °C to +105 °C |
| Slew Rate | 0.17 V/µs |
| Supply Current (no load) | 5 mA |
| Package Type | 8‑pin plastic DIP |
The OP07C operates from +3 V up to +22 V.
The maximum input offset voltage is 150 µV.
It can operate from –40 °C to +105 °C.
The DIP package has 8 pins.
