MT46H16M16LF is a mobile DDR SDRAM product released by Micron Technology. The product uses bidirectional data strobes, supports 1.8V voltage, and internally uses a dual-channel architecture to achieve two data accesses per cycle. The product has four internal banks that can perform concurrent operations. In addition, the product also supports programmable burst lengths, auto refresh and self refresh modes.

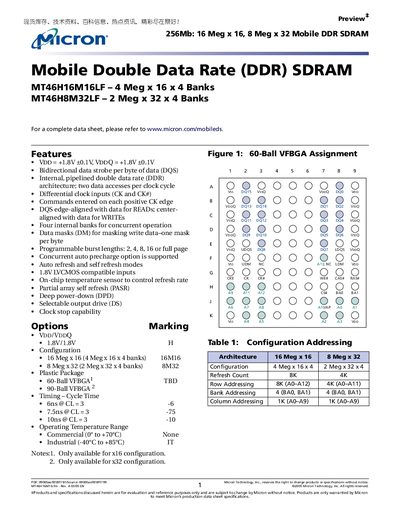

This Micron datasheet describes two mobile DDR SDRAM parts, the MT46H16M16LF (4 Meg × 16 × 4 banks) and the MT46H8M32LF (2 Meg × 32 × 4 banks). It lists electrical characteristics, functional features, and supported operating modes such as auto‑refresh, deep power‑down, and partial array self‑refresh.
Package options include 60‑ball and 90‑ball VFBGA formats, with timing options of 6 ns, 7.5 ns, and 10 ns cycle times. The parts operate from a 1.8 V supply and are qualified for commercial (0 °C to +70 °C) and industrial (‑40 °C to +85 °C) temperature ranges.
| Supply Voltage (VDD) | +1.8 V ±0.1 V |
|---|---|
| I/O Voltage (VDDQ) | +1.8 V ±0.1 V |
| Data Strobe | Bidirectional per byte (DQS) |
| Internal Banks | Four banks |
| Burst Lengths | 2, 4, 8, 16 or full page |
| Package Type | 60‑ball VFBGA, 90‑ball VFBGA |
| Cycle Time (CL=3) | 6 ns, 7.5 ns, 10 ns |
| Operating Temperature | Commercial 0 °C to +70 °C; Industrial ‑40 °C to +85 °C |
It operates from a 1.8 V supply with a ±0.1 V tolerance (VDD and VDDQ).
Both 60‑ball and 90‑ball VFBGA packages are offered.
Burst lengths of 2, 4, 8, 16 or a full page can be selected.
The parts are rated for commercial use from 0 °C to +70 °C and industrial use from ‑40 °C to +85 °C.
