NXP AN10364 Opto-electrical isolation of the I 2 C-bus (operating the bus between points with different local ground potential) Manual

This document discusses factors that need consideration when an I2C-bus is used to communicate between two points that do not share a common logic ground potential. I2C logic signals are referenced to a ground level and it is expected that connected devices share that reference. In practice, when an I2C-bus is extended to link devices that are separated by distances exceeding about 1 meter there can be many factors that cause differences in the local ground potential of those devices and that in turn affects the noise margins of the system and can lead to device ratings being exceeded. In other cases, where an I2C-bus could provide an attractive data link there is no possibility for a shared ground reference. Examples include the need to provide safety isolation between the I2C control signals and AC mains power, telephone lines, or patient monitoring medical equipment. In other cases, such as Power over Ethernet, standards require isolation of the grounds. Solutions are provided to deal with ground differences ranging from less than 1 V up to kilovolt levels by using Opto or transformer isolators in the signal path. Key to all solutions is the availability of I2C isolation devices.

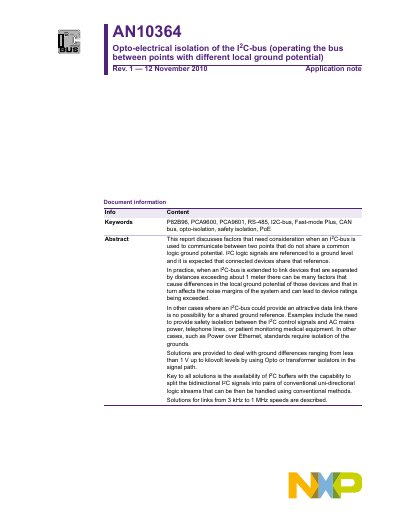

NXP AN10364 Opto-electrical isolation of the I 2 C-bus (operating the bus between points with different local ground potential) Manual - cover page
Brand
NXP
Category
Other Electronics
Document type
Application Note
Language
English
Pages
16
File format
PDF
File size
398 KB
Published
22 March, 2012
Updated
01 October, 2023
MD5 checksum
B51ACA60996FDC686A00799F0CCC800A

About this manual

The note discusses the challenges of using the I2C‑bus when devices do not share a common ground, such as noise margins, voltage rating violations, and safety requirements for isolation from mains, telephone lines, or PoE. It presents several isolation techniques, including increased signal amplitudes, conversion to differential signalling (CAN or RS‑485), and true galvanic isolation using opto‑couplers.

Practical circuit examples are provided for speeds ranging from a few kilohertz up to 1 MHz. The document shows how to split SDA/SCL into uni‑directional streams, use differential drivers, and select fast opto‑couplers (e.g., 6N137) to achieve higher bus speeds while tolerating ground‑potential differences from less than 1 V to kilovolt levels.

What's inside

  • Introduction
  • Using a differential signal technique to carry the SDA and SCL signals
  • Opto-coupling supports very large ground differences
  • Achieving higher opto-coupled bus speeds: 100 kHz
  • Opto-couplers for 400 kHz
  • Operating up to Fast-mode Plus speeds — 1 MHz
  • Multi-node opto-electrical isolation
  • Conclusion
  • Legal information

Specifications

Maximum I2C bus speed with opto‑coupling1 MHz
Supported ground‑potential differenceup to kilovolt levels

Frequently asked questions

What is the highest I2C bus speed achievable using opto‑couplers?

With fast opto‑couplers and proper timing, the bus can operate at a real 1 MHz speed.

How large a ground‑potential difference can be tolerated between I2C nodes?

The presented solutions cover differences from less than 1 V up to kilovolt levels.

Which opto‑couplers are recommended for 100 kHz operation?

Couplers such as 6N137 with Schottky‑clamped output transistors provide the needed speed for 100 kHz.

Can the I2C bus be isolated using differential signalling?

Yes, the note shows how CAN or RS‑485 drivers can carry SDA and SCL as differential signals, providing common‑mode immunity of around +7 V.
