NXP UM10540 NVT2001GM NVT2002DP demo boards Manual

NXP Voltage Translators (NVT) are used in bidirectional signaling voltage level translation applications for I/O buses with incompatible logic levels. The NVT2001 and NVT2002 are single- and dual-channel voltage translators, operational from 1.0 V to 3.6 V at VCC(A) (low voltage side) and 1.8 V to 5.5 V at VCC(B) (high voltage side) without direction control for open-drain or push-pull I/O devices.

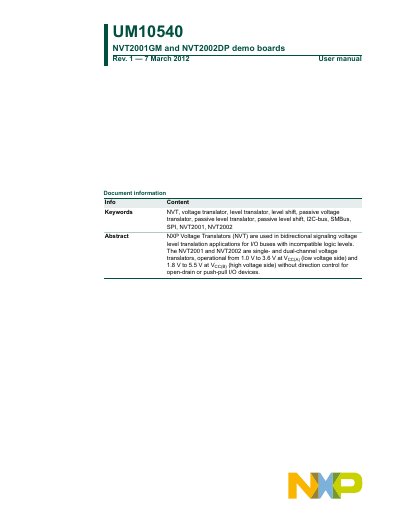

NXP UM10540 NVT2001GM NVT2002DP demo boards Manual - cover page
Brand
NXP
Category
Other Electronics
Document type
User Manual
Language
Chinese
Pages
7
File format
PDF
File size
328 KB
Published
22 March, 2012
Updated
29 September, 2023
MD5 checksum
809BC502C411425D128443DBC4533626

About this manual

The NVT2001GM and NVT2002DP demo boards are provided to evaluate NXP's single‑channel and dual‑channel bidirectional voltage level translators. The boards allow interfacing between device I/Os operating at different voltage levels and include configurable jumpers and pull‑up resistors for various I/O styles.

The manual details the schematic, jumper and header functions, and provides reference information such as abbreviations, legal notices, and links to the related data sheet and application note. It also explains how to enable or disable the translator devices and how to configure pull‑up resistors based on the voltage difference between VREFB and VREFA. This manual is written in Chinese.

What's inside

  • Introduction
  • Hardware description
  • Schematic
  • Jumper and header functions
  • Abbreviations
  • References
  • Legal information

Specifications

Voltage range (low‑voltage side)1.0 V to 3.6 V
Voltage range (high‑voltage side)1.8 V to 5.5 V
Channel configurationSingle‑channel (NVT2001GM) or dual‑channel (NVT2002DP)

Frequently asked questions

How do I enable the translator device on the demo board?

Short pins 2 and 3 on jumper J1 to enable the NVT2001GM or NVT2002DP device.

When should the 10 kΩ pull‑up resistors be removed?

If VREFB − VREFA is greater than or equal to 1 V, open jumper J2 and remove resistors R2 and R3.
