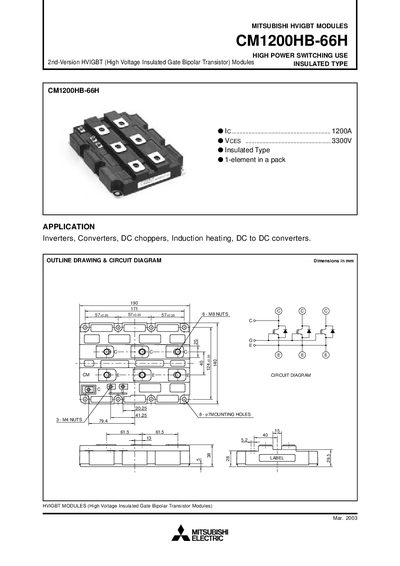

This document describes the features and applications of the 2003 Mitsubishi HVIGBT module CM1200HB-66H, which is suitable for inverters, converters, DC choppers, induction heating, and DC to DC converters.
The CM1200HB-66H is a high‑power, insulated‑type HVIGBT module designed for use in inverters, converters, DC choppers, induction heating and DC‑to‑DC converters. It features a single‑element pack and is suitable for high‑voltage switching applications.
Key specifications include a collector‑emitter voltage rating of 3300 V, a continuous collector current of 1200 A (2400 A pulsed), isolation voltage of 6000 V, and a typical mass of 22 kg. Detailed electrical characteristics, capacitance data, thermal resistance, and performance curves are provided for design and integration.
| Continuous collector current (Ic) | 1200 A |
|---|---|
| Pulse collector current | 2400 A |
| Junction temperature range (Tj) | -40 °C to +150 °C |
| Typical mass | 22 kg |
| Mounting torque (M8 screw) | 6.67 – 13.00 N·m |
The continuous collector current rating is 1200 A.
The typical mass of the module is 22 kg.
