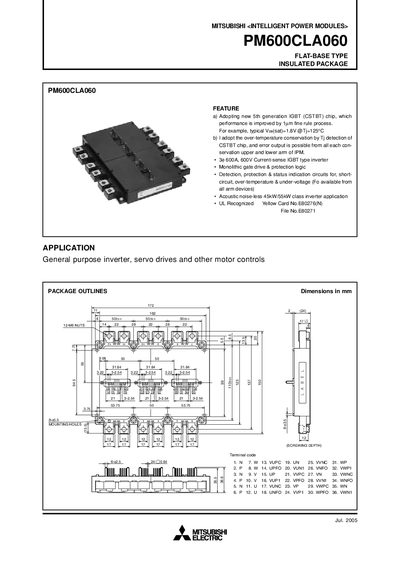

This document describes the features and characteristics of the MITSUBISHI INTELLIGENT POWER MODULES PM600CLA060 flat-base insulated package produced in July 2005. It adopts the 5th generation IGBT (CSTBT) chip, which improves performance. It is suitable for general purpose inverters, servo drives, and other motor control applications.
The Mitsubishi Electric PM600CLA060 is an insulated flat‑base intelligent power module intended for general‑purpose inverter, servo drives and other motor‑control applications.
This service manual contains detailed electrical and thermal ratings, mechanical dimensions, wiring diagrams, testing procedures, and safety precautions to ensure proper installation and reliable operation.
| Junction Temperature Range | -20 °C to +150 °C |
|---|---|
| Mounting Torque (M6 screw) | 3.5 Nm – 4.0 Nm |
| Weight | 1250 g |
The junction temperature can operate from –20 °C up to +150 °C.
