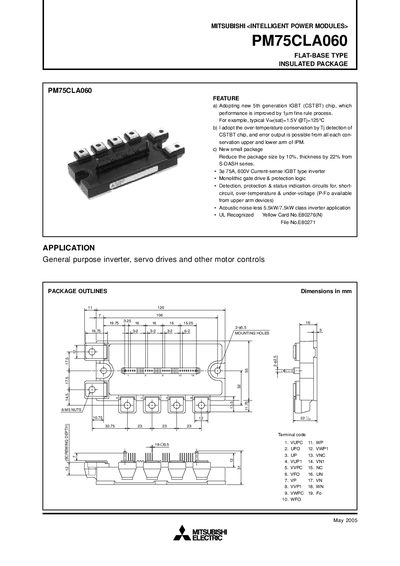

PM75CLA060 FLAT-BASE TYPE INSULATED PACKAGE is a 3φ 75A, 600V Current-sense IGBT type inverter produced by MITSUBISHI
The PM75CLA060 is a flat‑base, insulated Intelligent Power Module that incorporates a 5th‑generation IGBT (CSTBT) chip, offering a typical collector‑emitter saturation voltage of 1.5 V at 125 °C and a compact package size reduced by 10 % compared with the S‑DASH series. It is designed for general‑purpose inverter, servo drive and other motor‑control applications, delivering up to 5.5 kW/7.5 kW class inverter performance with built‑in gate‑drive, protection logic and status indication circuits.
The manual contains detailed block diagrams, maximum electrical and thermal ratings, mechanical dimensions, recommended mounting torque, wiring guidelines, testing precautions, and performance curves. It also outlines protection features such as over‑temperature detection, short‑circuit and under‑voltage protection, and provides application example circuits for safe and reliable operation.
| Collector‑Emitter Voltage (VCE(sat)) | 1.5 V @ Tj=125 °C |
|---|---|
| Maximum Collector Current | 75 A |
| Power Dissipation | 390 W |
| Junction Temperature Range | -20 °C ~ +150 °C |
| Mounting Torque (Main terminal screw) | 2.5 – 3.5 Nm |
| Weight | 380 g |
| Supply Voltage (Protected) | 13.5 ~ 16.5 V |
The module is rated for a maximum continuous collector current of 75 A.
A torque of 2.5 Nm to 3.5 Nm is recommended for the main terminal screw.
The module includes over‑temperature detection, short‑circuit protection, under‑voltage protection, and fault‑output signals for each arm.
