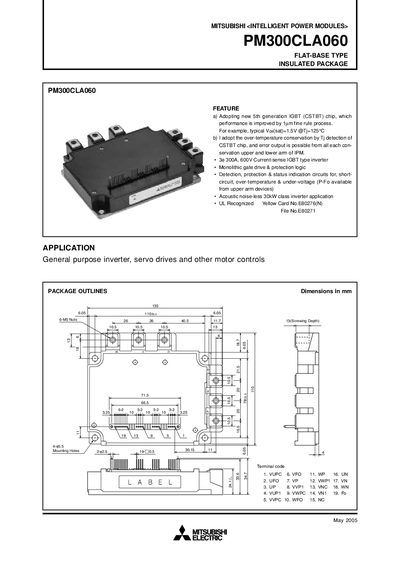

This document describes the features and characteristics of the MITSUBISHI Intelligent Power Module PM300CLA060, released in May 2005. It includes the adoption of a new 5th generation IGBT (CSTBT) chip with improved performance and over-temperature protection.
The PM300CLA060 is a flat‑base, insulated Intelligent Power Module designed for general‑purpose inverter, servo drive, and motor control applications. It incorporates a 5th‑generation IGBT (CSTBT) chip with improved performance and over‑temperature protection.
The document details maximum ratings, electrical and mechanical characteristics, recommended operating conditions, testing precautions, and performance curves, enabling engineers to integrate the module safely and efficiently into power conversion systems.
| Collector‑Emitter Saturation Voltage (typical) | 1.5 V @ Tj=125 °C |
|---|---|
| Continuous Collector Current | 300 A |
| Peak Collector Current | 600 A |
| Collector Dissipation | 1041 W |
| Junction Temperature Range | -20 °C to +150 °C |
| Weight | 800 g |
Typical VCE(sat) is 1.5 V at a junction temperature of 125 °C.
The recommended supply voltage across the P‑N terminals is less than 400 V.
