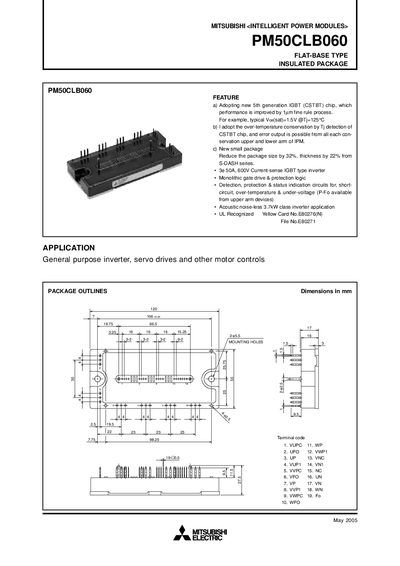

The PM50CLB060 is a flat‑base, insulated intelligent power module featuring a 5th‑generation IGBT (CSTBT) chip, reduced package size, and integrated gate‑drive and protection logic. It is intended for general‑purpose inverters, servo drives, and other motor‑control applications.
The document provides maximum electrical ratings, thermal characteristics, mechanical dimensions, recommended operating conditions, and detailed test procedures to ensure safe and reliable operation.
| Peak Collector Current | 100 A |
|---|---|
| Junction Temperature Range | -20 °C ~ +150 °C |
| Weight | 340 g |
The peak collector current rating is 100 A at 25 °C.
It includes over‑temperature detection, short‑circuit protection, under‑voltage protection, and fault‑output signals for each arm.
