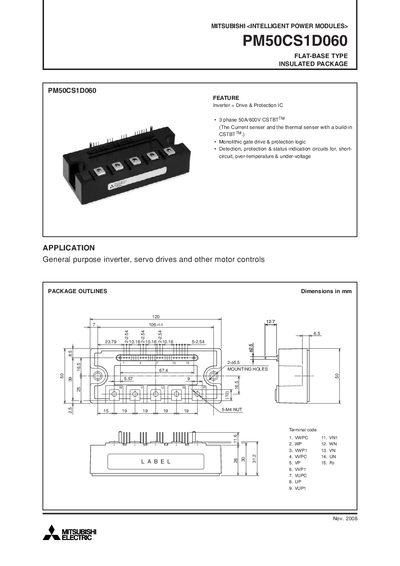

PM50CS1D060 is a 3 phase 50A/600V intelligent power module with a build-in current sensor and thermal sensor. It is applicable to general purpose inverter, servo drives and other motor controls.
The PM50CS1D060 is an intelligent power module that integrates a three‑phase 50 A/600 V CSTBT inverter, drive, and protection IC. It offers monolithic gate‑drive logic and built‑in current and thermal sensing, making it suitable for general‑purpose inverters, servo drives, and other motor‑control applications.
The document details electrical and mechanical ratings, performance curves, and recommended wiring and testing practices. It includes maximum voltage and current ratings, thermal resistance data, mounting guidelines, and safety precautions for reliable operation.
| Junction Temperature Range | -20 °C to +150 °C |
|---|---|
| Mounting Screw Size | M5, 2.5–3.5 mm |
| Weight | 400 g |
It includes detection and protection for short‑circuit, over‑temperature, and under‑voltage conditions.
Mounting uses M5 screws with a thread length of 2.5 mm to 3.5 mm.
