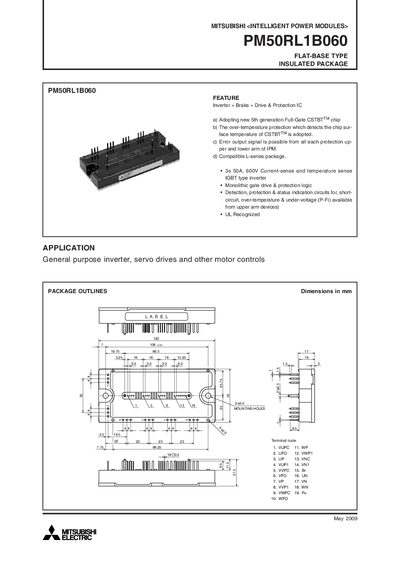

PM50RL1B060 is a three-phase 50A, 600V intelligent power module that adopts 5th generation Full-Gate CSTBTTM chip, integrates inverter, brake, drive and protection logic, detects short-circuit, over-temperature and under-voltage and outputs error signals. It is suitable for general-purpose inverters, servo drives and other motor controls.
The PM50RL1B060 is a flat‑base, insulated Intelligent Power Module that integrates an IGBT inverter, brake, drive and protection circuitry. It is intended for general‑purpose inverter, servo drive and other motor‑control applications.
The manual contains functional block diagrams, maximum and mechanical ratings, recommended operating conditions, testing precautions, performance curves, switching‑loss data and transient thermal‑impedance characteristics, as well as mounting and wiring recommendations.
| Junction temperature range (Tj) | -20 °C to +150 °C |
|---|---|
| Weight | 340 g |
The junction temperature is specified from –20 °C to +150 °C.
