PM50RL1A060 is a 3φ50A, 600V intelligent power module produced by Mitsubishi. The module uses the new generation of Full-Gate CSTBTTM chip, and has over-temperature protection, short circuit protection, under-voltage protection functions.
The Mitsubishi PM50RL1A060 is an insulated, flat‑base Intelligent Power Module that integrates an inverter, brake and drive & protection IC. It is designed for general‑purpose inverter, servo drive and motor control applications.

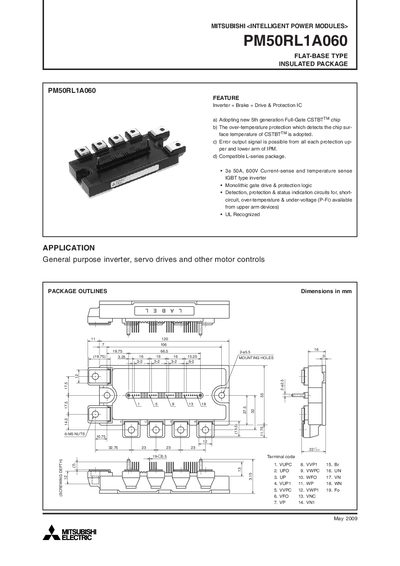

The manual provides detailed electrical and mechanical ratings, recommended operating conditions, testing precautions, and performance curves to help engineers integrate the module safely and efficiently.
| Continuous Collector Current (Ic) | 50 A |
|---|---|
| Peak Collector Current (IcP) | 100 A |
| Collector Dissipation (Pc) | 284 W |
| Junction Temperature Range | -20 ~ +150 °C |
| Supply Voltage (VD) | 13.5 ~ 16.5 V |
| Weight | 380 g |
The module is rated for a continuous collector current of 50 A.
It includes over‑temperature, over‑current, short‑circuit, under‑voltage and fault‑output protections.
The recommended supply voltage is between 13.5 V and 16.5 V.
