PM75CL1B120 is a 3-phase 75A, 1200V intelligent power module that uses the fifth generation full-gate CSTBTTM chip and integrates drive, protection, detection, etc. It has short circuit, over temperature, undervoltage protection functions and UL certification.

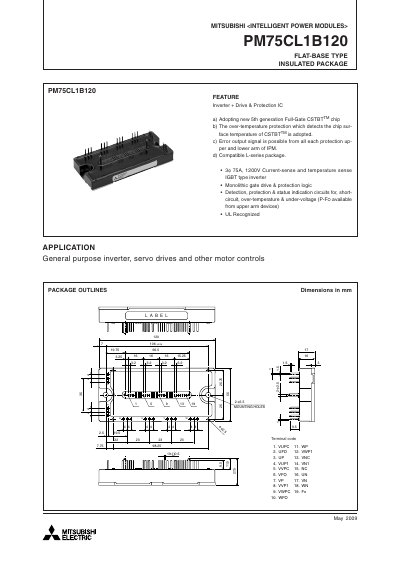

The Mitsubishi PM75CL1B120 is an insulated flat‑base intelligent power module that integrates an inverter, drive and protection IC. It features a 5th‑generation Full‑Gate CSTBT chip, over‑temperature detection, fault output signals, and UL recognition, making it suitable for general‑purpose inverter and servo drive applications.
The manual provides detailed electrical and mechanical ratings, recommended operating conditions, testing precautions, performance curves, and thermal impedance data to assist designers and service engineers in implementing the module safely and efficiently.
| Continuous Collector Current | 75 A |
|---|---|
| Peak Collector Current | 150 A |
| Power Dissipation | 595 W |
| Junction Temperature Range | -20 °C to +150 °C |
| Weight | 340 g |
The module includes over‑temperature protection, short‑circuit protection, under‑voltage protection, and fault‑output signaling for each arm.
