PM150RL1A120 is a three-phase 150A, 1200V integrated intelligent power module that adopts a new generation of full-gate CSTBTTM chip. It integrates gate drive and protection logic, and has short-circuit, over-temperature, under-voltage protection and other functions. It is widely used in general inverters, servo drives and other motor control fields.
The PM150RL1A120 is a flat‑base, insulated Intelligent Power Module that integrates an inverter, brake, drive and protection ICs. It is designed for general‑purpose inverter, servo drive and other motor‑control applications.

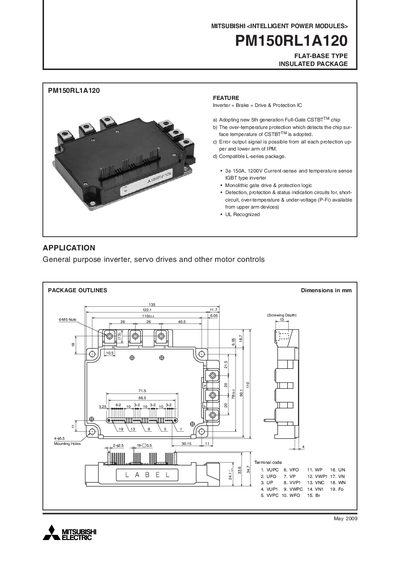

The document provides maximum ratings, thermal characteristics, mechanical dimensions, recommended operating conditions and performance curves for both the inverter and brake sections of the module.
| Collector Current (Ic) | 150 A |
|---|---|
| Peak Collector Current (IcP) | 300 A |
| Power Dissipation (Pc) | 833 W |
| Junction Temperature Range | -20 °C to +150 °C |
The module is rated for a continuous collector current of 150 A.
The recommended VCC supply voltage is 13.5 V to 16.5 V.
